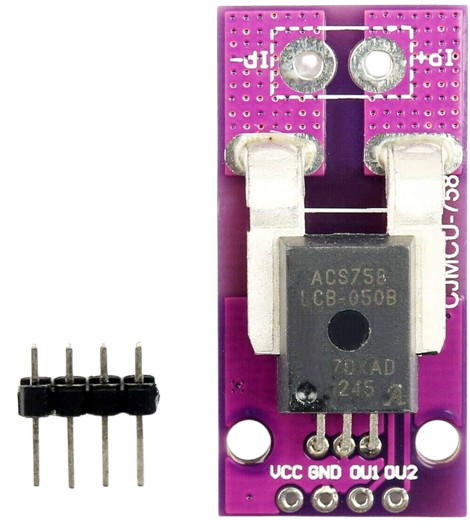

ACS758 Hall Current sensor Module (choose amps)

ACS758 Hall Current sensor Module (choose amps)

KSh 1,500.00

+ Free Shipping

The module comprises an accurate, low-offset straight Hall circuit with a copper conduction path. Applied current flows through this copper conduction path which produces the magnetic field which the Hall IC converts into a corresponding voltage. We can adjust module precision or accuracy through the nearness of the magnetic signal to the Hall transducer. The low-offset Hall IC, which is programmed for precision at the industrial facility provides A precise, proportional output voltage.

SKU: N/A Category: Tag:

Features

  • Industry-leading noise performance through proprietary amplifier and filter design techniques
  • Integrated shield reduces capacitive coupling from current conductor to die because of high dV/dt signals, and prevents offset drift in high-side, high-voltage applications
  • Total output error improvement through gain and offset trim over temperature
  • Small package size, with easy mounting capability
  • Monolithic Hall IC for high reliability
  • Ultra-low power loss: 100 μΩ internal conductor resistance
  • Galvanic isolation allows use in economical, high-side current sensing in high-voltage systems
  • AEC Q-100 qualified

Specifications

  • Usage: Hall
  • Current Sensoris_customized: Yes
  • Type: Optical-Electronics Sensor
  • Theory: Hall Sensor
  • Output: Analog Sensor
  • Model Number: ACS758LCB Hall Current Sensor
  • Material: Mixture
  • 3.0 to 5.5 V, single supply operation
  • 120 kHz typical bandwidth
  • 3 μs output rise time in response to step input current
  • Output voltage proportional to AC or DC currents
  • Factory-trimmed for accuracy
  • Extremely stable output offset voltage
  • Nearly zero magnetic hysteresis
