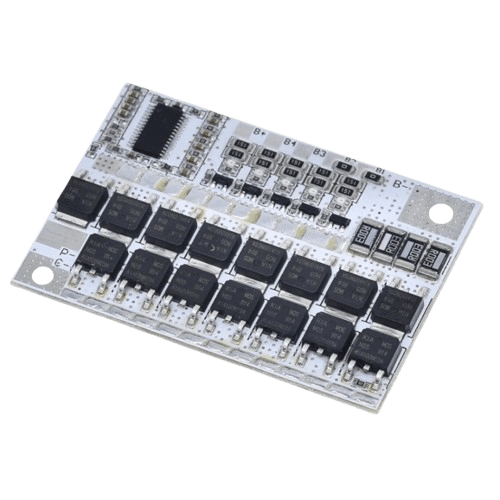

BMS PCM 3S, 4S, 5S-12.6V,16.8V,21v 100A module for 3.7v Li-Ion cells

Description

The BMS protection system is designed for three Li-Ion cells with a total nominal voltage of 12.6 V, 16.8v, 21v. It has the function of charging cells with the option of a balancer, discharging and a function of protection against excessive discharge. Cells can be charged with continuous current up to 60 A and discharged with current up to 60 A in common port mode and up to 80 A in split port mode. The BMS module allows for comprehensive service of Li-Ion cells.

Features

• Charging voltage: 12.6 V (3s), 16.8v (4s), 21v (5s)
• Charging current: 60 A.
• Common Port Mode Discharge Current: 60A
• Split Port Mode Discharge Current: 80A
• Designed for 3,4,5 Li-Ion cells in series
• Overload, overcurrent protection
• Working temperature: -20 to 65 ° C
• Dimensions: 62 x 42 x 4 mm

Connection diagram

Connection procedure:

1. Connect the batteries in series.
2. Connect:

• For split port mode: the negative terminal of the charger to the terminal C- and the negative terminal of the load to the terminal P-.
• For common port mode: charger negative terminal and load negative terminal to terminal C-.

Connect the positive terminal of the charger and load to the positive field of the batteries. Connect the positive pole of each battery to terminals B +, B4, and B3. Connect the negative battery field to the B- terminal (connected to B2 and B1).

Split port mode

Same port mode
