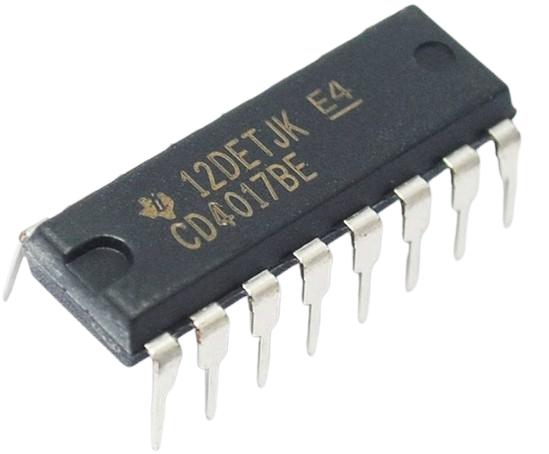

CD4017-Cmos counter

specifications

The CD4017B is a 5-stage Johnson counter with 10 decoded outputs. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. Schmitt trigger action in the CLOCK input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times. This counter has an advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Use of the Johnson counter configuration permits high-speed operation, 2-input decode-gating and spike-free decoded outputs. Anti-lock gating is provided, thus assuring proper counting sequence.

4017 IC is a CMOS counter/divider integrated circuit, actually a decada counter with 10 decode ouputs. It is 5 stage Johnson counters having 10 decoded outputs. Inputs include a clock, a reset, and a clock inhibit signal.

Schmitt trigger action in the clock input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times.

• Counter Type: Decade / Divider
• ClockFrequency: 11MHz
• Count Maximum: 5
• Logic Case Style: DIP
• No. of Pins: 16Pins
• Supply Voltage Min: 3V Supply
• Voltage Max: 18V
• Logic IC Family: CD4000
• Logic IC Base Number: 4017
• Operating Temperature Min: -55°C
• Operating Temperature Max: 125°C
• Product Range: CD4000 LOGIC Series
• RoHS Phthalates Compliant: Yes
