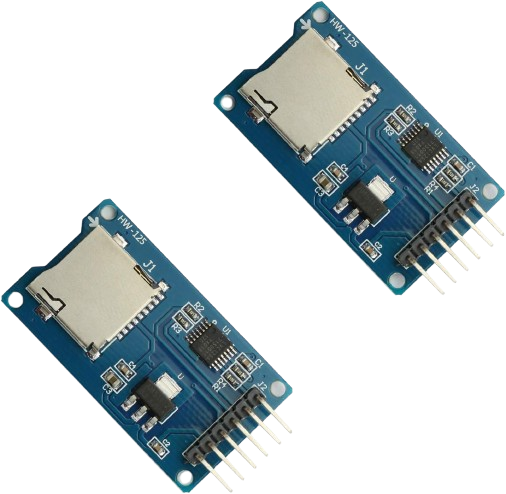

Micro SD TF Card Storage SPI Module

SD cards or Micro SD cards are widely used in various applications, such as data logging, data visualization, and many more. Micro SD Card Adapter modules make it easier for us to access these SD cards with ease. The Micro SD Card Adapter module is an easy-to-use module with an SPI interface and an on-board 3.3V voltage regulator to provide proper supply to the SD card.

A Micro SD Card adapter module can be easily connected to an MCU/MPU. Since the module communicates via the SPI protocol, we need to connect the MISO, MOSI, SCK, and CS of the module to the MCU’s.

Features:

• Support Micro SD Card, Micro SDHC card (high-speed card)
• Supports SPI interface
• Operating Voltage: 4.5 ~ 5.5V
• 3.3 V on-board Voltage Regulator
• Supports FAT file system
• Supports micro SD up to 2GB & Micro SDHC up to 32GB


  Input Voltage	4.5 ~ 5.5V
  Input Current	0.2 ~ 200mA
  Cards Support	Micro SD (upto 2GB), Micro SDHC (upto 32 GB)
  Interface	SPI
  Number of Pins	6 (VCC,GND,MISO,MOSI,SCK,CS)
  Product Dimensions	42 x 24.2mm
