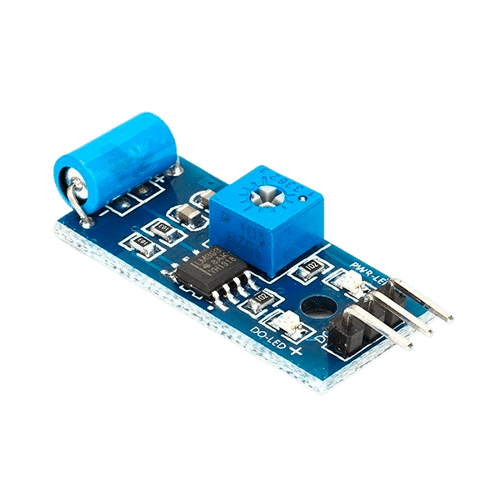

Vibration Sensor Module

Module Features:

• SW-420 using the company’s production of normally closed type vibration sensor.
• The comparator output, the signal is clean, the waveform, the driving ability to exceed 15mA
• Operating voltage 3.3V-5V
• The output in the form: Digital switching outputs (0 and 1)
• A fixed bolt hole for easy installation
• Small board PCB size: 3.2cm x 1.4cm
• Wide voltage LM393 comparator
